Carbon Steel Self-Tapping Thread Insert

Carbon steel self-tapping thread inserts are made of high-strength carbon steel, offering mechanical robustness and cost-effectiveness. Suitable for indoor or dry environments with lower corrosion requirements, they provide an economical solution for thread reinforcement. These inserts do not require pre-tapping and can cut directly into soft materials such as aluminum or plastic. They are easy to install and prevent thread stripping or disengagement, providing a high-strength, cost-efficient option for a wide range of assembly applications.

PREV：DIN 7965 Screwed Insert NEXT：Yellow Zinc Plated Self-Tapping Thread Insert

Product Features

High Mechanical Strength: Made from premium carbon steel, offering excellent tensile and impact resistance, suitable for high-load fastening applications.
Cost-Effective: Compared to stainless steel, carbon steel has lower production costs, ideal for bulk purchasing and large-scale assembly projects.
Self-tapping Quick Installation: Features built-in cutting threads, no pre-tapping or adhesive required. Can be quickly installed into base materials with standard tools, shortening construction time.
Thread Reinforcement: When embedded in soft materials, it forms high-strength internal threads, significantly improving load-bearing and vibration resistance, preventing thread damage.
Coating Options Available: Supports post-processing such as zinc plating or color zinc plating to enhance corrosion resistance, expanding its range of applications.

Applications

General Machinery: Thread reinforcement in indoor machinery, such as machine tools and printing equipment, to maintain operational stability.
Furniture Manufacturing: Pre-installing threads in hardware components of panel furniture and office desks/chairs to improve structural strength.
Electronic Devices: Thread reinforcement in plastic housings of consumer electronics and instruments to meet standard assembly requirements.
Sheet Metal Processing: Threaded connections in sheet metal parts, chassis, and cabinets, suitable for indoor dry condition fastening scenarios.

Product Specifications

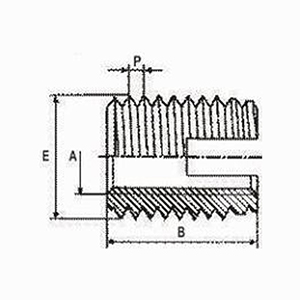

Type 302 (Slotted Type) Self-Inserting Screw Sleeve
The screw head features a cutting groove and a high-strength, wear-resistant thread. The cutting groove provides self-tapping capability for easy assembly, with strong vibration resistance and anti-loosening performance.

302(slotted type)		Length	External thread	Reference drilling diameter			Minimumdilling depth
The metric system	English system			Plastics	Aluminum alloy	Cast iron
M2-0.4		6	M4.5-0.5	4.0-4.1	4.1-4.2	4.2-4.3	8
M2.5-0.45	U#2-56	6	M4.5-0.5	4.0-4.1	4.1-4.2	4.2-4.3	8
M3-0.5	U#4-40	6	M5-0.5	4.5-4.6	4.6-4.7	4.7-4.8	8
M4-0.7	U#8-32	8	M6.5-0.75	5.8-5.9	6.0-6.1	6.1-6.2	10
M5-0.8	U#10-24	10	M8-1.0	7.1-7.2	7.3-7.5	7.5-7.6	13
M6a-1.0		12	M9-1.0	8.1-8.2	8.3-8.5	8.5-8.6	15
M6-1.0	U/14-20	14	M10-1.5	9.0-9.2	9.2-9.3	9.3-9.4	17
M8-1.25	U5/16-18	15	M12-1.5	10.6-10.8	11-11.2	11.2-11.4	18
M10-1.5	U3/8-16	18	M14-1.5	12.6-12.8	13.0-13.3	13.2-13.4	22
M12-175	U7/16-14	22	M16-1.5	14.6-14.8	15.0-15.3	15.2-15.4	26
M14-2.0	U1/2-13	24	M18-1.5	16.6-16.8	17.0-17.3	17.2-17.5	28
M16-2.0	U5/8-11	22	M20-1.5	18.6-18.8	19.0-19.3	19.2-19.5	27
M18-2.5		24	M22-1.5	20.6-20.8	21.0-21.3	21.2-21.5	29
M20-2.5		27	M26-1.5	24.6-24.8	25.0-25.3	25.2-25.2	32
