Tangless Wire Thread Insert

Tangless wire thread insert, also known as "steel wire screw sleeve without mounting handle", is a type of steel wire screw sleeve (threaded). A type of silk sleeve. There is a fishhook-shaped slot
on both ends of the steel wire screw sleeve without an installation handle. When installing tailless screw fittings, use specialized installation tools without distinguishing the direction of the
screw fittings. Simply install it, which is unparalleled by the tail screw sleeve, greatly improving the work efficiency. Efficiency is achieved. And because the tailless screw sleeve
does not have an installation handle, it eliminates the need to remove the installation handle. The steps further improve work efficiency and completely avoid the removal of installation handlesThe various problems caused.

PREV：No previous article NEXT：Screw-Lock Insert

Product Features

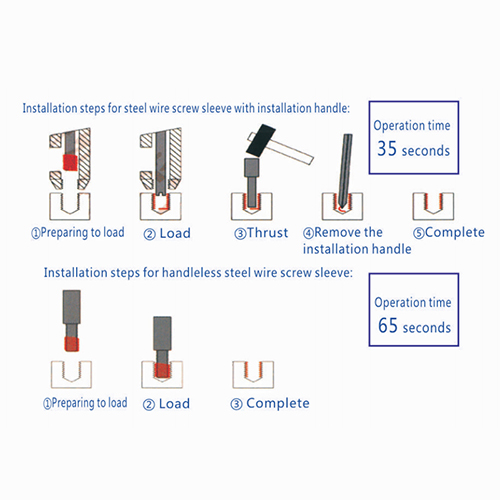

1. After the installation of the ordinary tail steel wire screw sleeve is completed, the installation handle needs to be removed. When installing the tail handle, it is easy to pull out the last round of steel wire. When installing the tailless steel wire screw sleeve,becauseThere is no tail handle installed, the tedious process of removing the installation handle with ordinary tail steel wire thread inserts is eliminated. The process saves time and improves efficiency!
2. The tailless steel wire screw sleeve is easy to install, and there is no directional requirement during installation. The screw sleeve can be installed at either end, making installation extremely convenient.
3. The installation tools for tailless steel wire thread inserts are complete, including pneumatic, electric tools, and batch production. The supporting tools and brackets for installation are suitable for large- scale installation and use, which can improve work efficiency. The rate is very helpful!

Product Specifications
